COMMUNICATIONS
Frequency Range
902 to 928MHz
Typical Working Range
Determined by reader
Polarization
Parallel with longer side
TIMING
On Timing
Tag switches to a continuous ON state after a maximum of 1400ms of the signal decision assertion (request to turn on the flashing signal)
Off Timing
Tag switches to a continuous OFF state within 1500ms of the signaling decision negation (request to turn off the flashing signal)
POWER REQUIREMENTS
Power Source
Externally powered through wire interface
AC: 5V to 10V RMS at 50-60Hz
DC: 5V to 24V at ≤ 5 mA
SOFTWARE FEATURES
Data Memory
ATA Mode: 60 bits
10 six-bit ASCII characters
User memory programmable using RF link
LIFE EXPECTANCY
Service Life
Unlimited
PHYSICAL
Dimensions
Size: 9.3 x 2.4 x 0.8in (23.6 x 6.1 x 2cm)
Weight: 7.9oz (225g), including cable
Case Material
Weatherproof, sealed, UV-stabilized, olive-drab case
Mounting Surface
Any smooth metal surface
If mounting surface is non-metallic or irregular, tag must be mounted to a metal backplate.
Mounting Method
Rivet Mounting: Tag must be mounted directly to any smooth metal surface using blind rivets or TIR-approved fasteners
Tape Mounting: VHB Double-sided tape
Interface Cable
Tag is hardwired with a jacketed, two-conductor, twisted-pair 37in (0.9m) interface cable
ENVIRONMENTAL
Operating Temperature
-40°F to +158°F (-40°C to +70°C)
Storage Temperature
-67°F to +185°F (-55°C to +85°C)
Humidity
0 to 95% non-condensing at 86°F (30°C) during operation
Vibration
5 to 20Hz, sine wave, 0.2in peak to peak 20 to 200Hz, 4.2G peak
Harsh Vibration
20Grms 20 to 2000Hz
Shock
10G terminal peak sawtooth, 11ms duration, 3 axes
Harsh Shock
200G, half-sine pulse, 3ms duration, 3 axes
COMPLIANCE
Electromagnetic Compatibility (EMC)
Tested and verified to EN50121-4:2006/
AC:2008 Railway Applications - Electromagnetic Compatibility Part 4
RF Interference
Tested and verified to FCC Part 15, Subpart B, Class B
OPTIONS
Labeling
Identification information, custom logos and/or organization name can be marked on tag case.
Model number and ID number can be indelibly marked on tag case top surface
ACCESSORIES
AP4600 Multifunction Tag Programmer
Designed for use in an office environment and connects to a host PC’s USB port. External power
required
AP4600 Programming Bracket
Required for programming AT5417 and AT5419 signal tags. Holds tag in position for accurate programming (sold separately).
MODEL PART NUMBERS

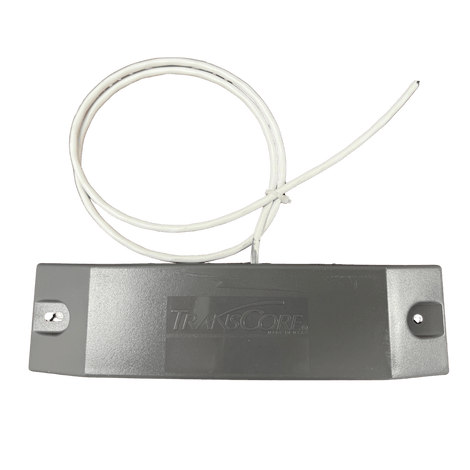

13-5419-NNN Signal Tag
14-4600-001 AP4600 Desktop Programmer
54-4600-001 AP4600 Programming Bracket
